MAXHUB 105" Ultrawide Panel – Digital Display Screens

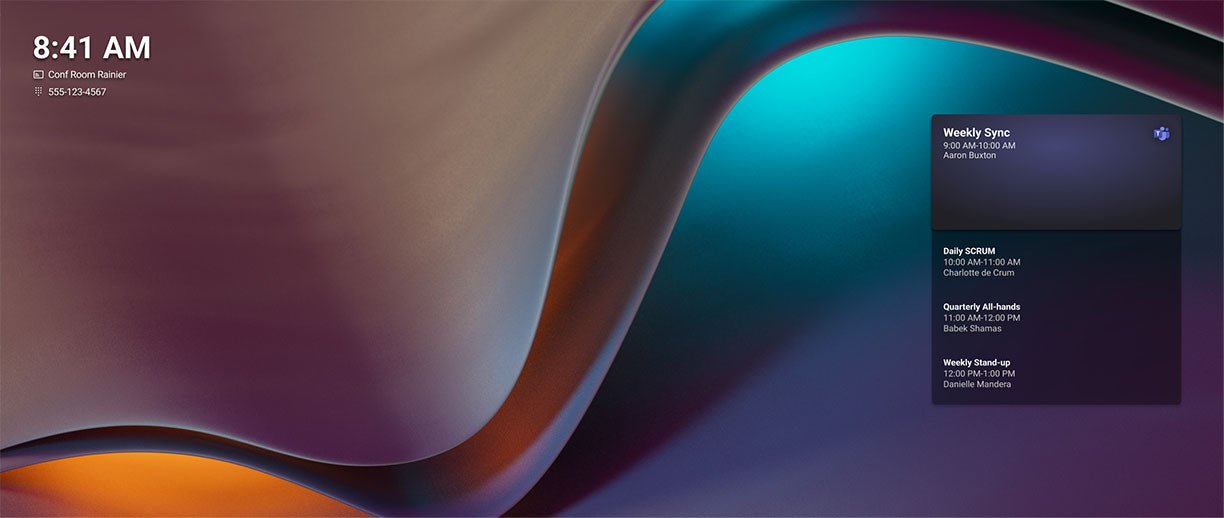

Make hybrid meetings and signage impossible to ignore with the MAXHUB 105" Ultrawide Panel digital display screens. The 21:9, 5K canvas unlocks Microsoft Teams Rooms (Signature/Front Row) layouts, while Crestron Connected® certification, OPS flexibility and USB-C (100W) keep Australian boardrooms, classrooms and lobbies running smoothly from day one.

Key Features & Benefits

• Ultra-immersive 21:9 vision: 5K (5120×2160) clarity across an expansive 105" canvas delivers 33% more usable space than 16:9, perfect for Front Row, multi-document views and data-rich dashboards.

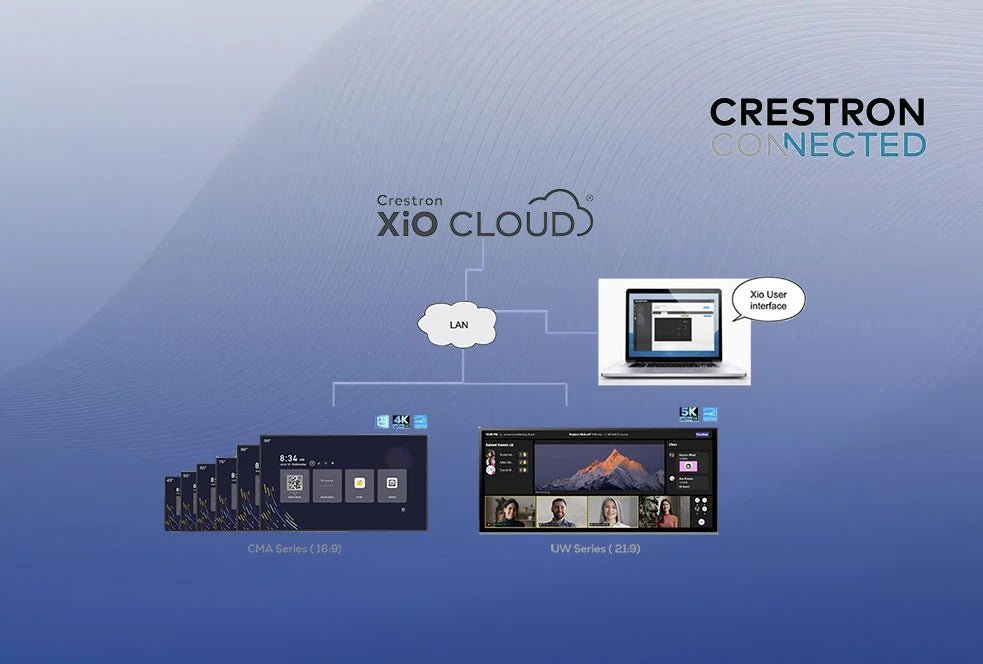

• Crestron Certified, enterprise-ready: Crestron Connected® with XiO Cloud® plus native AirMedia® integration streamlines one-touch power/input switching, remote updates and real-time monitoring. Compatible with Q-SYS and Extron control too.

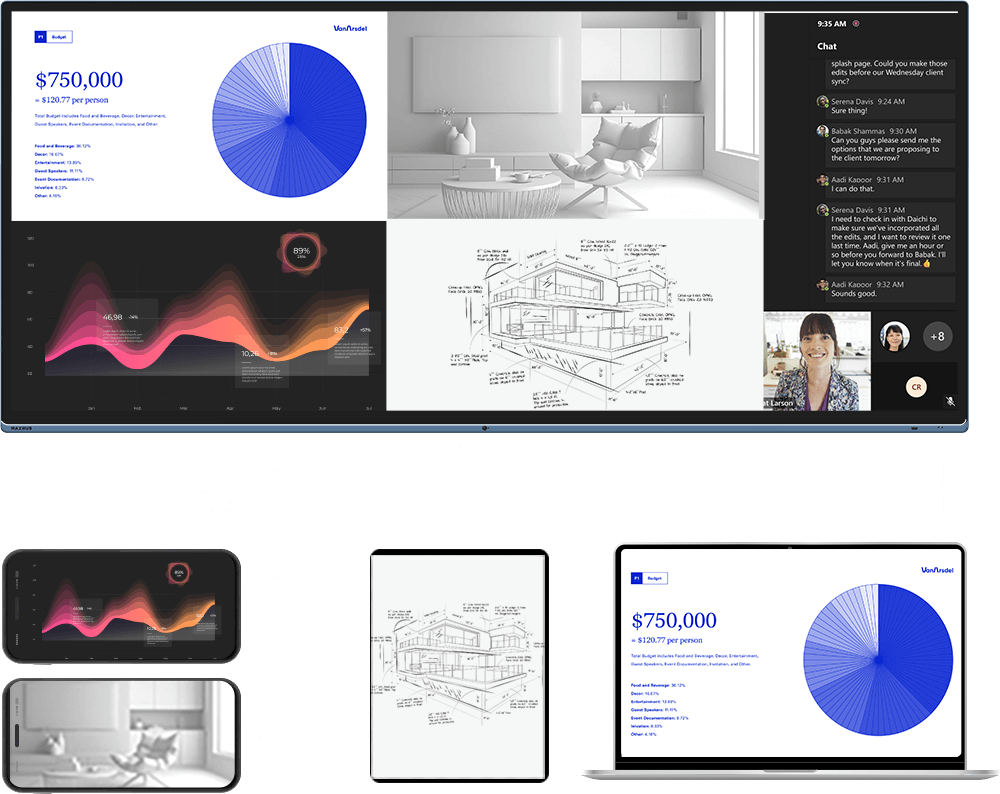

• BYOD/BYOM made effortless: USB-C with 100W PD, three HDMI 2.0, one HDMI 2.1 and DisplayPort provide simple plug-and-present options; MAXHUB Share enables wireless casting from up to nine devices.
• Built for visibility & comfort: Anti-glare 25% haze VA panel, 400-nit brightness and wide 178° viewing angles keep content readable in light-filled Australian spaces.

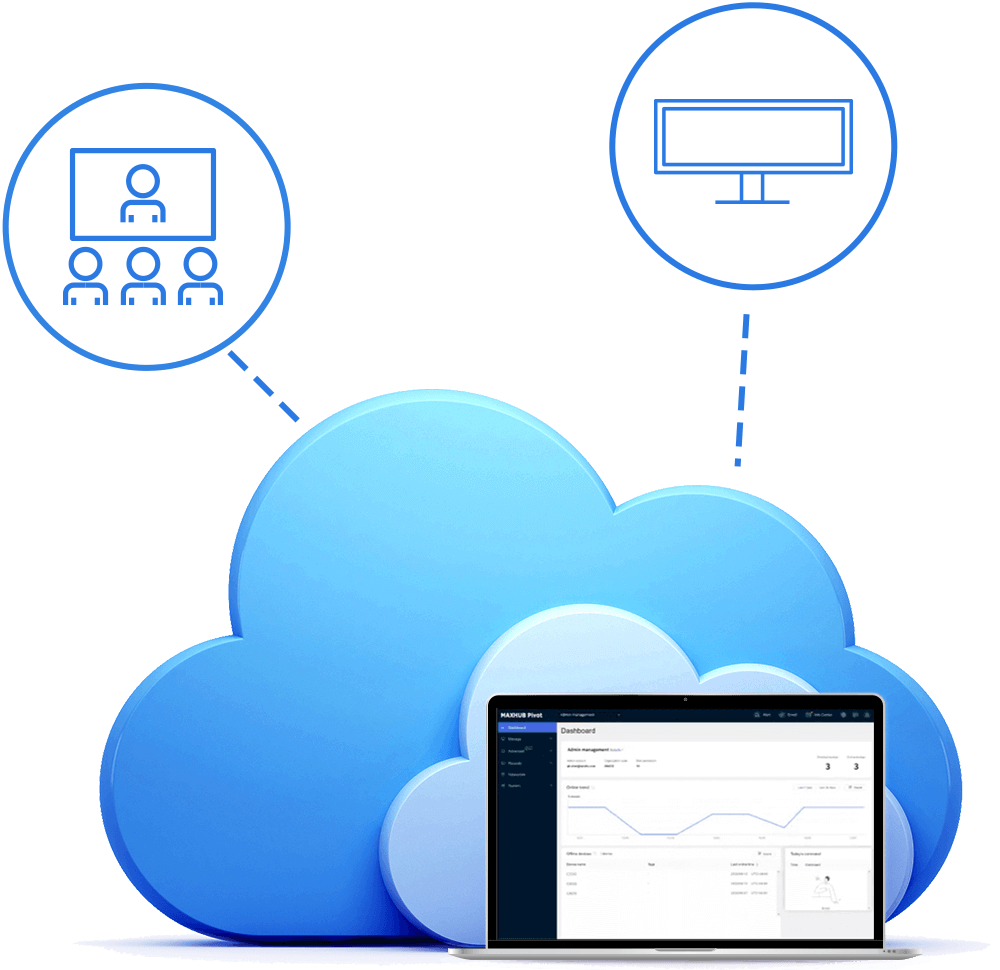

• All-in media & management: Android 13 internal player (8GB RAM/64GB storage) with MAXHUB Pivot device management for fleet-wide control, updates and content distribution.

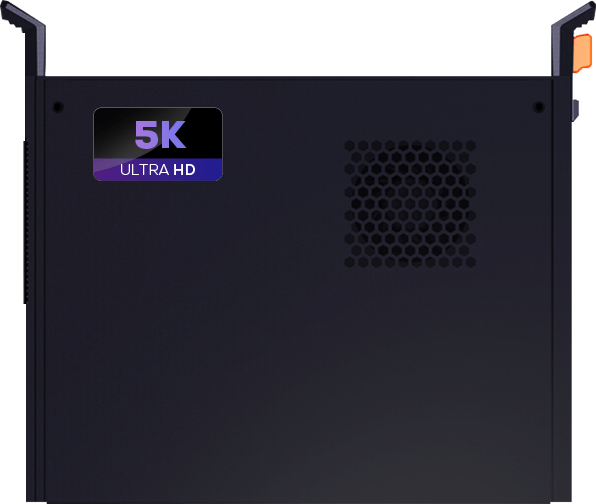

• OPS versatility: Built-in OPS slot for seamless Windows integration and quick switching between Android and Windows environments.
• Room-filling audio: Integrated 2×16W + 15W speakers enhance presentations and video playback without extra kit.
• Australian-ready reliability: 16/7 operation, ≥50,000-hour panel life, Energy Star compliant and supplied with a 3-year warranty and wall mount in the box.

Specifications & Technical Details

• Display
  • Screen Size (class): 105 | Diagonal: 105" / 266.7 cm
  • Panel Type: VA | Haze: 25% (Anti-Glare)
  • Aspect Ratio: 21:9 | Native Resolution: 5120×2160 (5K) | Refresh Rate: 60 Hz
  • Brightness (Typ.): 400 nits | Backlight: Direct Lit
  • Contrast Ratio: 4000:1 | Viewing Angle: 178° (H/V) | Response Time: 6.5 ms
  • Life Time (Min.): ≥50,000 hours | Operation Hours (per day): 16/7 | Orientation: Landscape
• Internal Player
  • Processor: A76×4 + A55×4 | Graphics: Mali-G610 MP4
  • Memory: 8 GB | Storage: 64 GB
  • Operating System: Android 13.0 | UI Resolution: 5K
• Connectivity

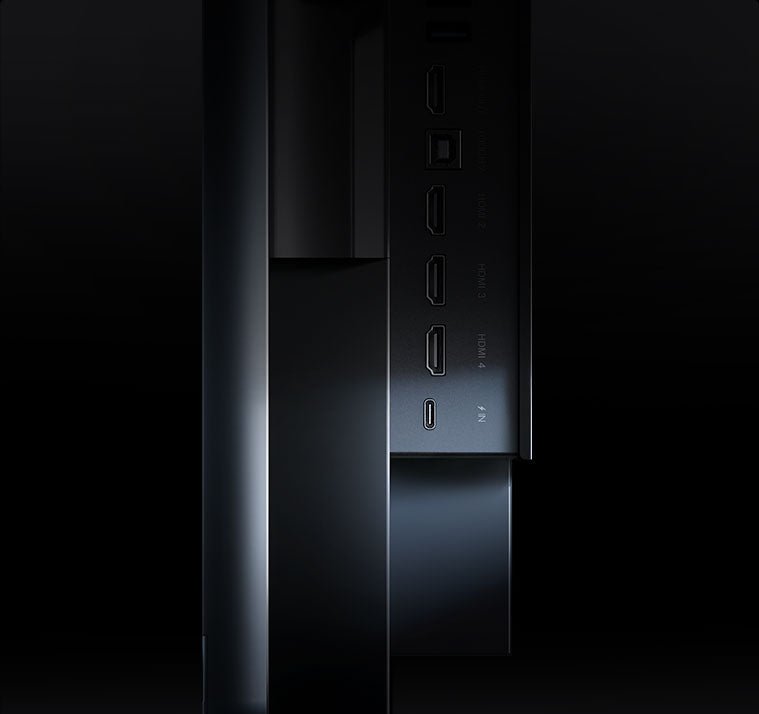

  • Inputs: HDMI 2.0 ×3 (max 3840×2160@60Hz); HDMI 2.1 ×1 (max 5120×2160@60Hz); DisplayPort ×1 (max 5120×2160@60Hz); USB Type-C ×1 (PD 100W); USB-A 3.0 ×4; USB-A 2.0 ×1; RJ45 in ×1
  • Outputs: HDMI 2.0 ×1; SPDIF ×1 (optical); Audio out ×1 (3.5 mm); RJ45 out
  • Control: RS232 ×1 / IR Receiver
  • Wi-Fi: Removable Wi-Fi module, Wi-Fi 6 (2.4G & 5G, 802.11ac/b/g/n/a/ax)
  • OPS Slot: Yes
• Mechanical
  • Product (W×H×D): 2511 × 1124 × 97 mm | 100.55 × 44.25 × 3.82 inch
  • Package (W×H×D): 2668 × 1305 × 280 mm | 105.04 × 51.34 × 11.02 inch
  • Net Weight: 89.4 kg | Gross Weight: 119.5 kg
  • VESA Mount: 1000 × 400
  • Handle: Yes
• Sensors
  • Motion Sensor: Yes
  • Light Sensor: Yes
• Environmental
  • Operating Temp: 0 °C – 40 °C | Operating Humidity: 10% – 90% RH
  • Storage Temp: −20 °C – 60 °C | Storage Humidity: 10% – 90% RH
• Power
  • Supply: 100–240 V~ 50/60 Hz
  • Consumption (Typical/Max): 550 W / 665 W
• Sound
  • Speaker Output: 2 × 16 W + 15 W
• Certification
  • Safety: IEC 62368-1 | EMC: Class B | ErP: Yes | Energy Star: Yes
  • Crestron Connected® certified; compatible with Crestron, Q-SYS and Extron control
• Features
  • Built-In Media Player: Yes | Device Management: MAXHUB Pivot
  • Screen Share: MAXHUB Share (up to 9 devices simultaneously)
  • BYOD setup with automatic activation of audio, camera and screen
• Accessory (in the box)
  • Power Cord; Wi-Fi Module ×1; HDMI Cable 2 m (6.56 ft) ×1; Remote Control ×1; Wall Mount ×1; USB-C Cable 1.8 m (6 ft) ×1
• Warranty
  • Display: 3-year warranty

Use Cases & Applications

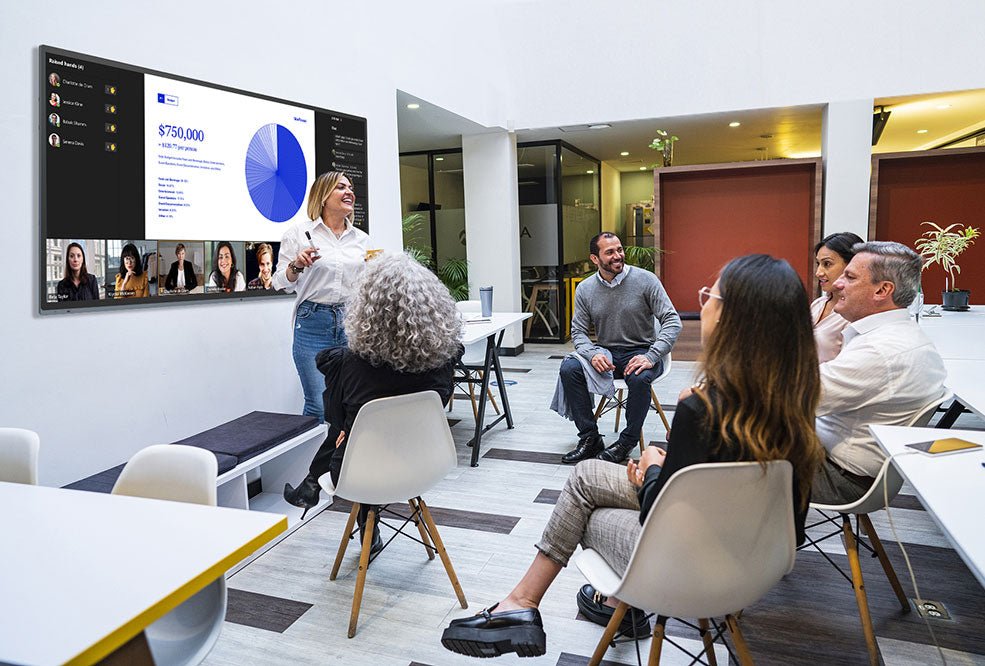

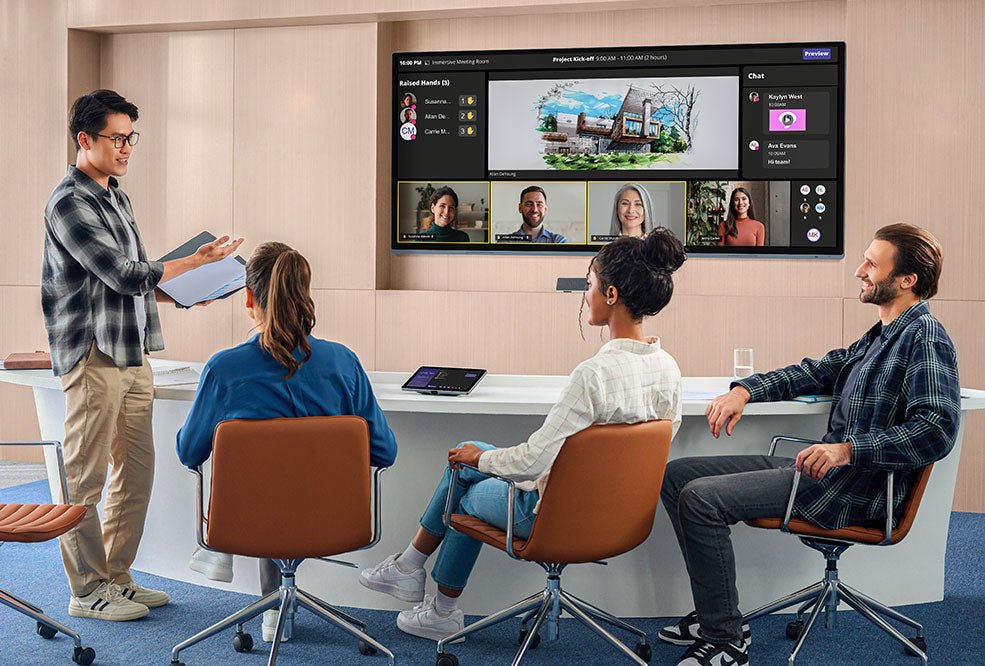

• Teams Rooms & executive boardrooms: Ultra-wide Front Row layouts with BYOD via USB-C 100W and pro control integration.
• Universities & training hubs: Multi-window teaching, panoramic lecture visuals and simple fleet management with Pivot.

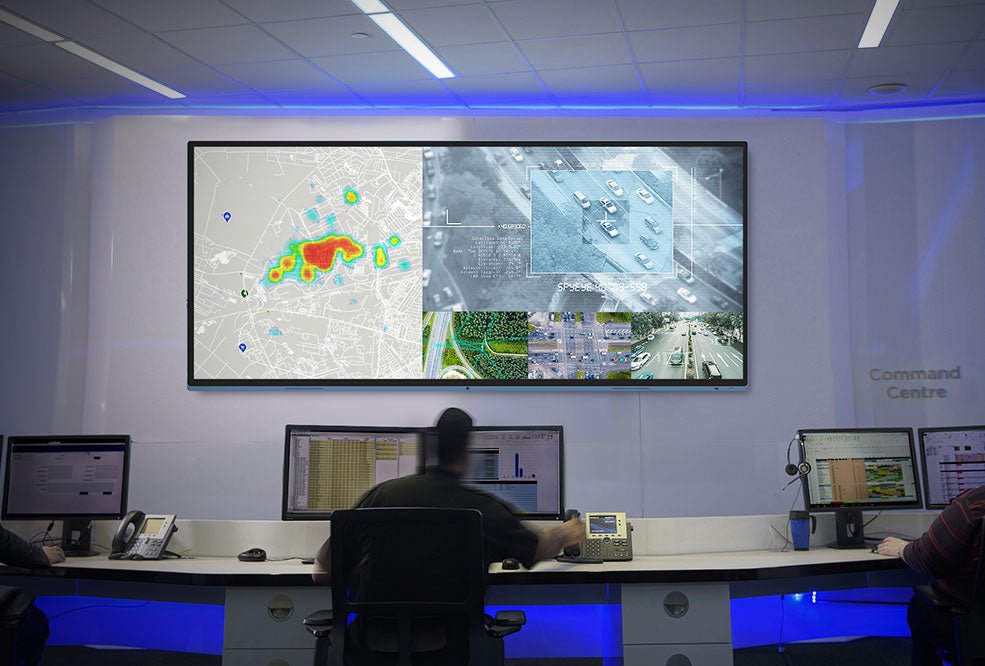

• Command & data walls: 5K clarity and 21:9 canvas for dashboards, timelines and side-by-side content.

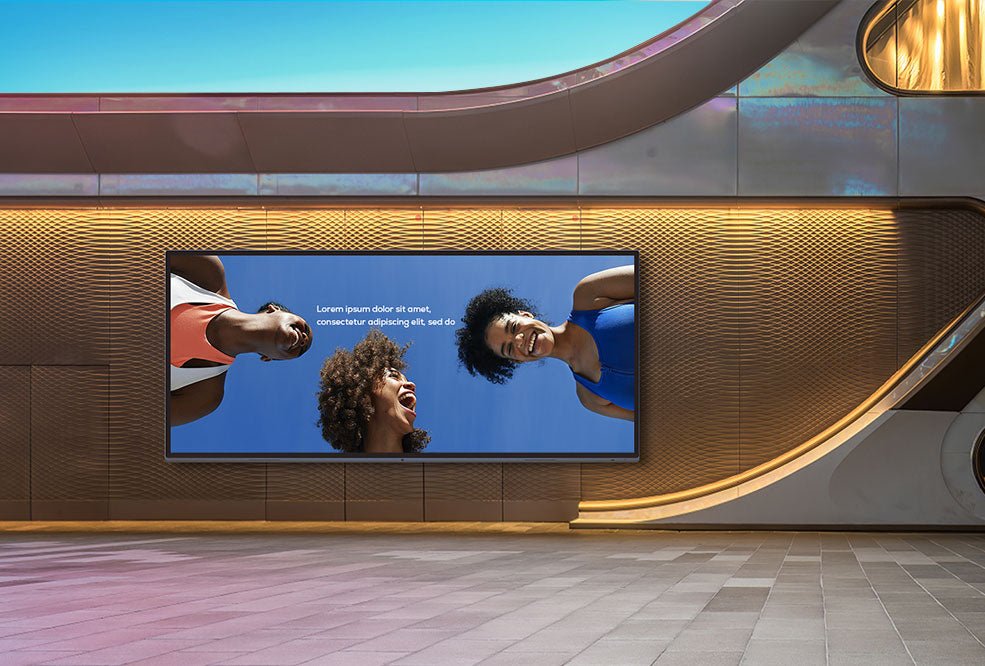

• Corporate lobbies & experience centres: Stand-out digital display screens for branding, event schedules and immersive storytelling.

Whether for retail, commercial spaces, or education, our digital display screens keep messaging sharp and effective.
